These nozzles utilise the nozzle-mix principle whereby the fuel gas and preheated oxygen are kept separate right up to the nozzle and are only mixed once inside the the nozzle preheat orifices. The nozzle mixing process ensures that the volume of mixed gas is kept to the absolute minimum and thereby reduces the occurrence of a flashback. Nozzles are manufactured from copper for good heat dissipation and can be cleaned with a fine file. Orifices are cleaned using appropriate cleaners. The shape of the flame as well as the nozzle performance depend on sharp, square orifice edges.

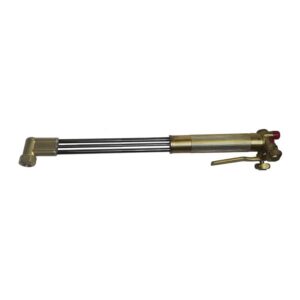

TAURUS ANM and ANME CUTTING NOZZLES are three-seat nozzles and oxygen and acetylene are used. They are fitted onto the TAURUS UNIVERSAL CUTTING TORCH,TAURUS TYPE 2 CUTTING AT-TACHMENT or the TAURUS STRAIGHT LINE CUTTER. These nozzles are presented in seven sizes and can cut material up to 300mm thick. ANME cutting nozzles are usually applied in automated cutting processes such as profile or straight line cutting. ANM cutting nozzles are usually applied when using handheld torches.
| NOZZLE SIZE | 0.8 |
| MATERIAL THICKNESS (mm) | 3 – 6 |
| CUTTING SPEED (mm/min) | 500 – 850 |
| OXYGEN PRESSURE (kPa) | 150 |
| ACETYLENE PRESSURE (kPa) | 15 |
| DESCRIPTION | VALUE |
| NOZZLE SIZE | 1.2 |
| MATERIAL THICKNESS (mm) | 6 – 12 |
| CUTTING SPEED (mm/min) | 440 – 700 |
| OXYGEN PRESSURE (kPa) | 200 |
| ACETYLENE PRESSURE (kPa) | 15 |
| DESCRIPTION | VALUE |
| NOZZLE SIZE | 1.6 |
| MATERIAL THICKNESS (mm) | 12 – 75 |
| CUTTING SPEED (mm/min) | 300 – 610 |
| OXYGEN PRESSURE (kPa) | 250 |
| ACETYLENE PRESSURE (kPa) | 15 |
| DESCRIPTION | VALUE |
| NOZZLE SIZE | 2.0 |
| MATERIAL THICKNESS (mm) | 75 – 100 |
| CUTTING SPEED (mm/min) | 180 – 250 |
| OXYGEN PRESSURE (kPa) | 300 |
| ACETYLENE PRESSURE (kPa) | 30 |
| DESCRIPTION | VALUE |
| NOZZLE SIZE | 2.4 |
| MATERIAL THICKNESS (mm) | 100 – 150 |
| CUTTING SPEED (mm/min) | 150 – 180 |
| OXYGEN PRESSURE (kPa) | 300 |
| ACETYLENE PRESSURE (kPa) | 30 |
| DESCRIPTION | VALUE |
| NOZZLE SIZE | 2.8 |
| MATERIAL THICKNESS (mm) | 150 – 250 |
| CUTTING SPEED (mm/min) | 100 – 250 |
| OXYGEN PRESSURE (kPa) | 450 |
| ACETYLENE PRESSURE (kPa) | 35 |
| DESCRIPTION | VALUE |
| NOZZLE SIZE | 3.2 |
| MATERIAL THICKNESS (mm) | 250 – 300 |
| CUTTING SPEED (mm/min) | 90 – 125 |
| OXYGEN PRESSURE (kPa) | 550 |
| ACETYLENE PRESSURE (kPa) | 35 |
