TAURUS CG1-30 STRAIGHT LINE CUTTER

SKU CG-130 Category

The straight line cutter CG1-30 is a light, portable machine running on rails which can be extended to suit the cutting length. It uses oxygen-acetylene or oxygen-LPG. The traveling speed is adjustable enabling cutting through materials up to 100mm thick. Cutting nozzles ANME/ANM and PNME/PNM used on the universal cutting torch, can both be fitted to the machine.

GAS CUTTING

  • A light and portable main body manufactured from high-strength aluminium.
  • Adjustable speed control.
  • Quick-connectors for rapid hose connections.
  • Designed for straight line cutting and circle cutting diameters between 20mm and 200mm.
  • Designed for a single cutting head.
  • Beveling range: IYV (45%).
contact us

If using oxygen-acetylene gas then use the following nozzles:

  • ANM
  • ANME

If using oxygen-LPG gas then use the following nozzles:

  • PNM
  • PNME



DESCRIPTION VALUE
Voltage supply 220 V

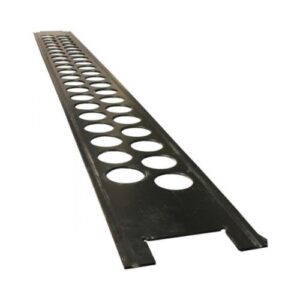

Track length 1.8M
Track included 1
Track length extendable Yes
Cutting thickness (mm) 6 – 100
Cutting speed (mm/min) 50 – 750
