A pure copper filler wire deoxidised with 3% silicon for welding a wide range of copper alloys including overlaying of steels and cast irons. The wire is optimised for laser brazing.
Download or Whatsapp a PDF of this product

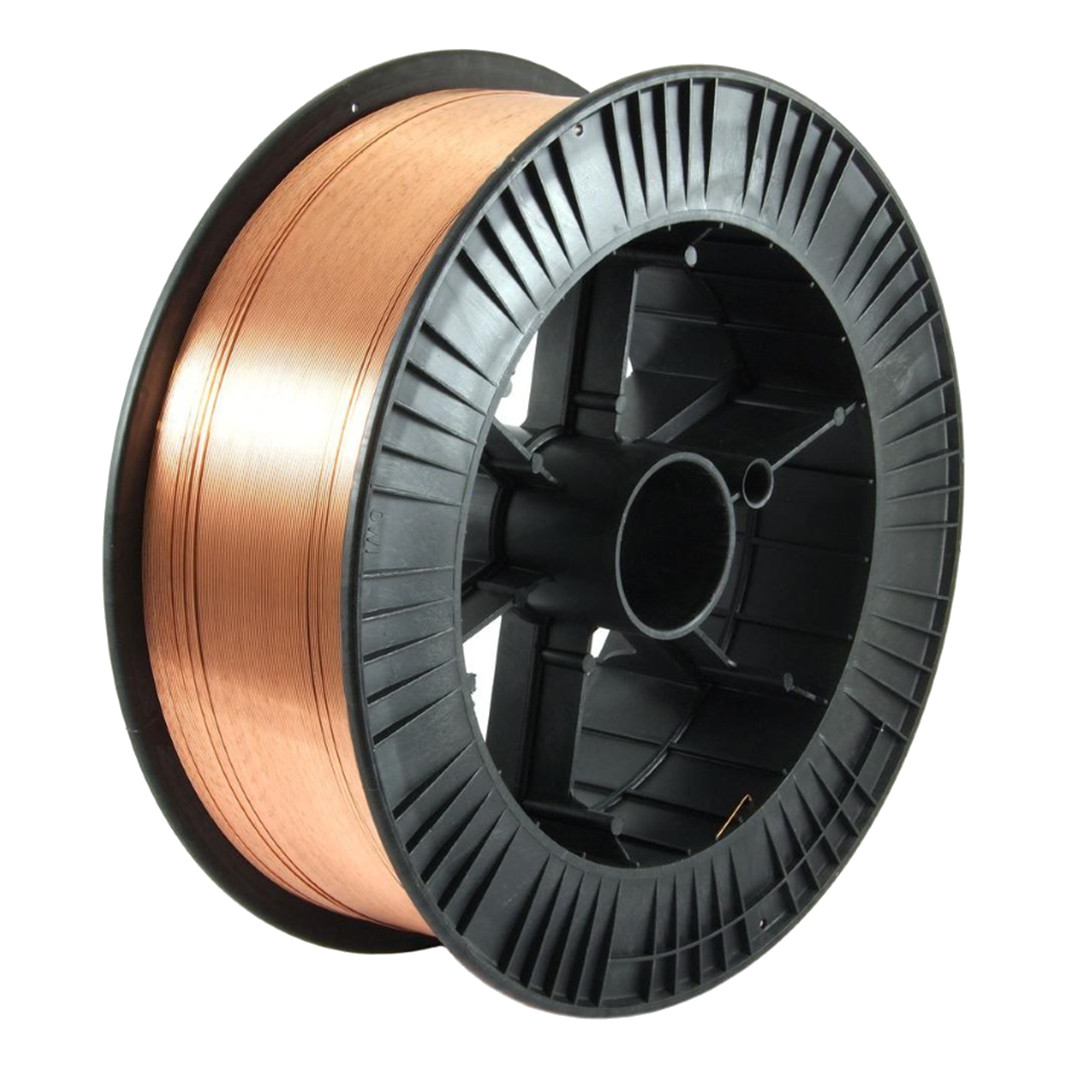

TAURUS MIG SILICON BRONZE is a pure copper filler wire deoxidised with 3% silicon for welding a wide range of copper alloys including overlaying of steels and cast irons. The wire is optimised for laser brazing.
Applications include plate for chemical plant and moulds, stills and calorifiers, rods and wires for electrical components and tubes for heat exchangers. Also excellent for MIG brazing and laser brazing onto galvanised steel for automotive body panels.
General purpose including phosphorous deoxidised copper, silicon bronze, nickel silver and some brasses.
| COMPOSITION | % |
| Silicon | 4.5 – 5.5 |
| Iron | 0.4 Max |
| Manganese | 0.75 – 1.5 |
| Phosphorous | 0.02 Max |
| Zinc | 0.02 Max |
| Tin | 0.2 Max |
| Lead | 0.02 Max |
| Aluminium | 0.01 Max |
| Iron | 0.3 Max |
| Copper | Balance |
| MECHANICAL PROPERTIES | AS WELDED |
| Tensile strength | 330 – 370 MPa |
| Elongation on 5d | 40 Max |
| Hardness | 80 – 90 HB |
