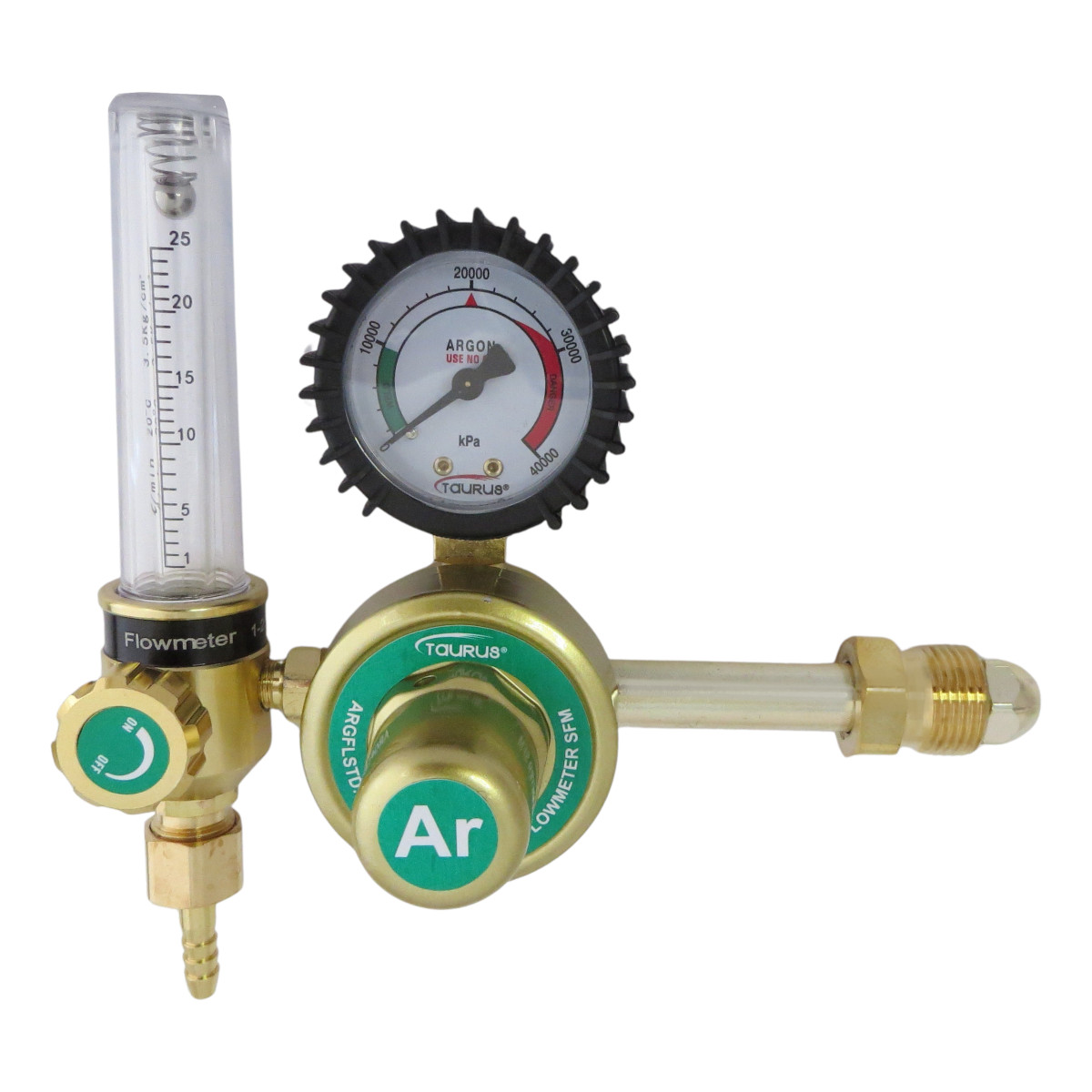

The TAR1SFM and TARG1-CFM Taurus argon flowmeter connects to an argon gas cylinder. Its function is to measure the amount of gas passing through. It is generally used in TIG and MIG welding. The adjustment knob adjusts the flowrate and not the pressure. The flowrate is set in litres per minute. The gauge measures the inlet pressure and the tube measures the delivery flowrate.
| SPECIFICATION | TARG1-CFM | TARG1-SFM |
| Gas | Argon | Argon |
| Maximum inlet pressure | 23000 KPa | 23000 KPa |
| Inlet Connection | G 5/8″ B-RH | G 5/8″ B-RH |
| Supply pressure gauge | 0 – 31500 KPa | 0 – 31500 KPa |
| Flow | 0 – 30 Lpm | 0 – 30 Lpm |
| Outlet connection | – | 3/8″ RH |
| Heated | No | No |

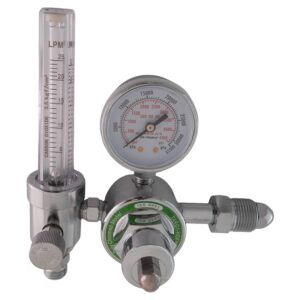

The TARG1-HDFM Taurus heavy duty flowmeter is manufactured from heavy duty brass which connects to an argon gas cylinder. Its function is to measure the amount of gas passing through. It is generally used in TIG and MIG welding. The adjustment knob accurately controls the flowrate but not the pressure.. The flowrate is set in litres per minute. The gauge measures the inlet pressure and the tube measures the delivery flowrate.
| SPECIFICATION | TARG1-CFM |
| Gas | Argon |
| Maximum inlet pressure | 23000 KPa |
| Inlet Connection | G 5/8″ B-RH |
| Supply pressure gauge | 0 – 31500 KPa |
| Flow | 0 – 30 Lpm |
| Outlet connection | 3/8″ RH |
| Heated | No |

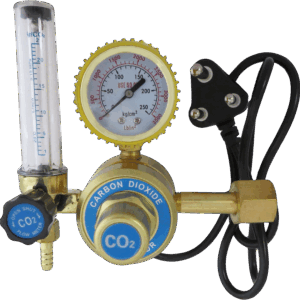

The Taurus CO2 heated flow meter connects to a gas cylinder. Its primary function is to heat the MIG gas mixture containing carbon dioxide and prevent it from freezing. The flowrate is measured in liters per minute and can be adjusted. The inlet pressure is indicated on the gauge.
| SPECIFICATION | HEATED |
| Gas | Carbon Dioxide |
| Maximum inlet pressure | 23000 KPa |
| Inlet Connection | BS341 – RH |
| Supply pressure gauge | 0 – 31500 KPa |
| Flow | 0 – 30 Lpm |
| Outlet connection | 3/8″ RH |
| Heated | Yes |
