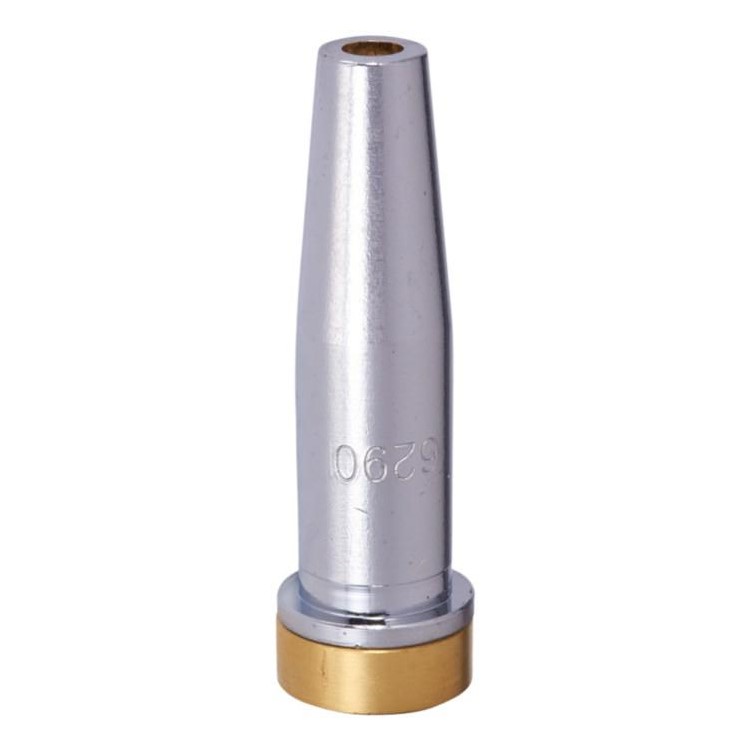

TAURUS NX nozzles are flat based, use oxygen and LPG and fit onto the TAURUS 62-3F cutting torches. Six sizes are available and depending on the nozzle size and gas equipment can cut metal up to 300mm thick.
| DESCRIPTION | VALUE |
| SIZE | NX0 |
| MATERIAL THICKNESS (mm) | 10 – 15 |
| OXYGEN PRESSURE (kPa) | 200 – 300 |
| LPG LOW PRESSURE (kPa) | 1.5 – 20 |
| DESCRIPTION | VALUE |
| SIZE | NX1 |
| MATERIAL THICKNESS (mm) | 15 – 25 |
| OXYGEN PRESSURE (kPa) | 250 – 350 |
| LPG LOW PRESSURE (kPa) | 1.5 – 20 |
| DESCRIPTION | VALUE |
| SIZE | NX2 |
| MATERIAL THICKNESS (mm) | 25 – 50 |
| OXYGEN PRESSURE (kPa) | 300 – 400 |
| LPG LOW PRESSURE (kPa) | 1.5 – 20 |
| DESCRIPTION | VALUE |
| SIZE | NX3 |
| MATERIAL THICKNESS (mm) | 50 – 75 |
| OXYGEN PRESSURE (kPa) | 300 – 450 |
| LPG LOW PRESSURE (kPa) | 1.5 – 20 |
| DESCRIPTION | VALUE |
| SIZE | NX4 |
| MATERIAL THICKNESS (mm) | 75 – 150 |
| OXYGEN PRESSURE (kPa) | 350 – 550 |
| LPG LOW PRESSURE (kPa) | 1.5 – 20 |
| DESCRIPTION | VALUE |
| SIZE | NX5 |
| MATERIAL THICKNESS (mm) | 150 – 200 |
| OXYGEN PRESSURE (kPa) | 450 – 550 |
| LPG LOW PRESSURE (kPa) | 1.5 – 20 |
| DESCRIPTION | VALUE |
| SIZE | NX6 |
| MATERIAL THICKNESS (mm) | 200 – 300 |
| OXYGEN PRESSURE (kPa) | 500 – 650 |
| LPG LOW PRESSURE (kPa) | 1.5 – 20 |
