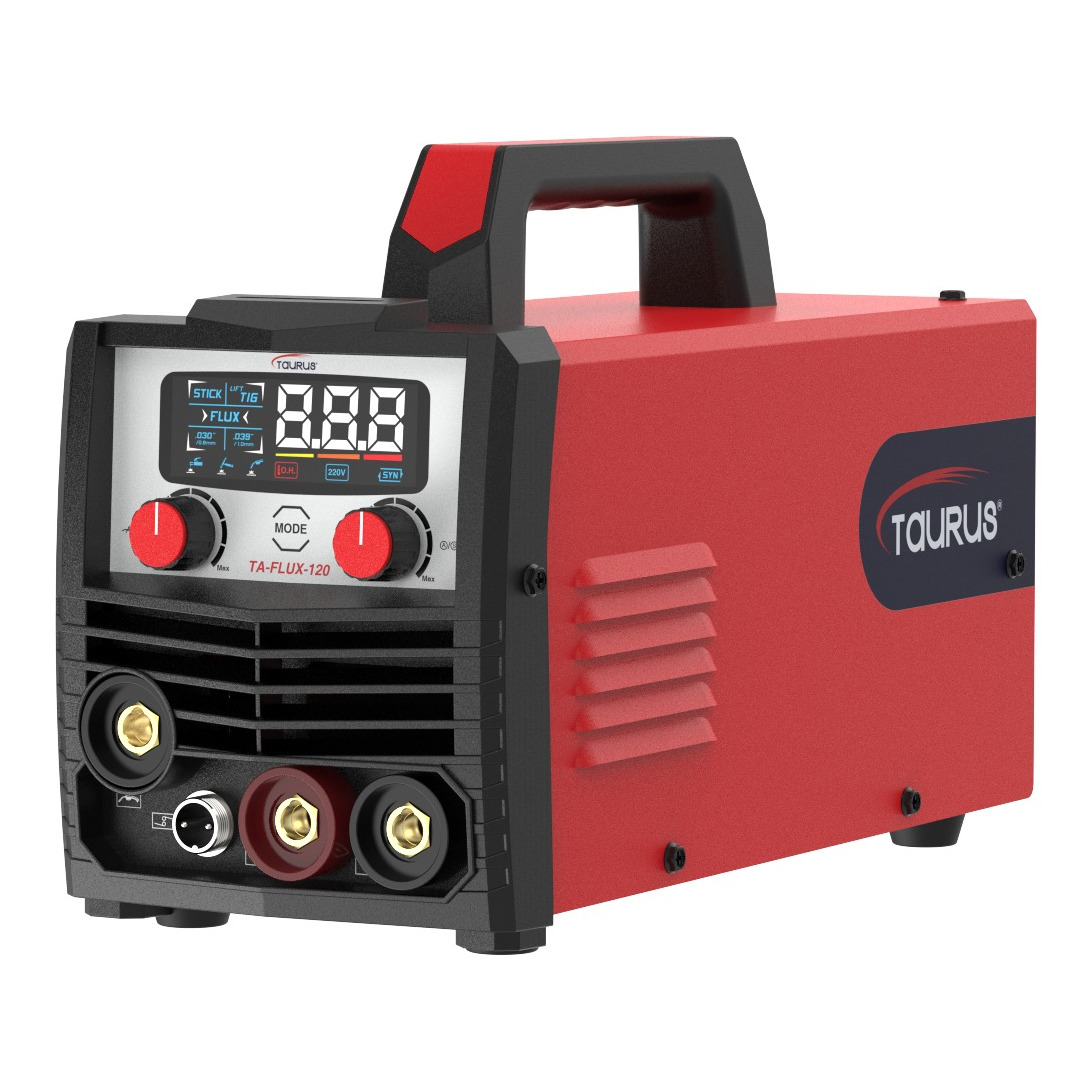

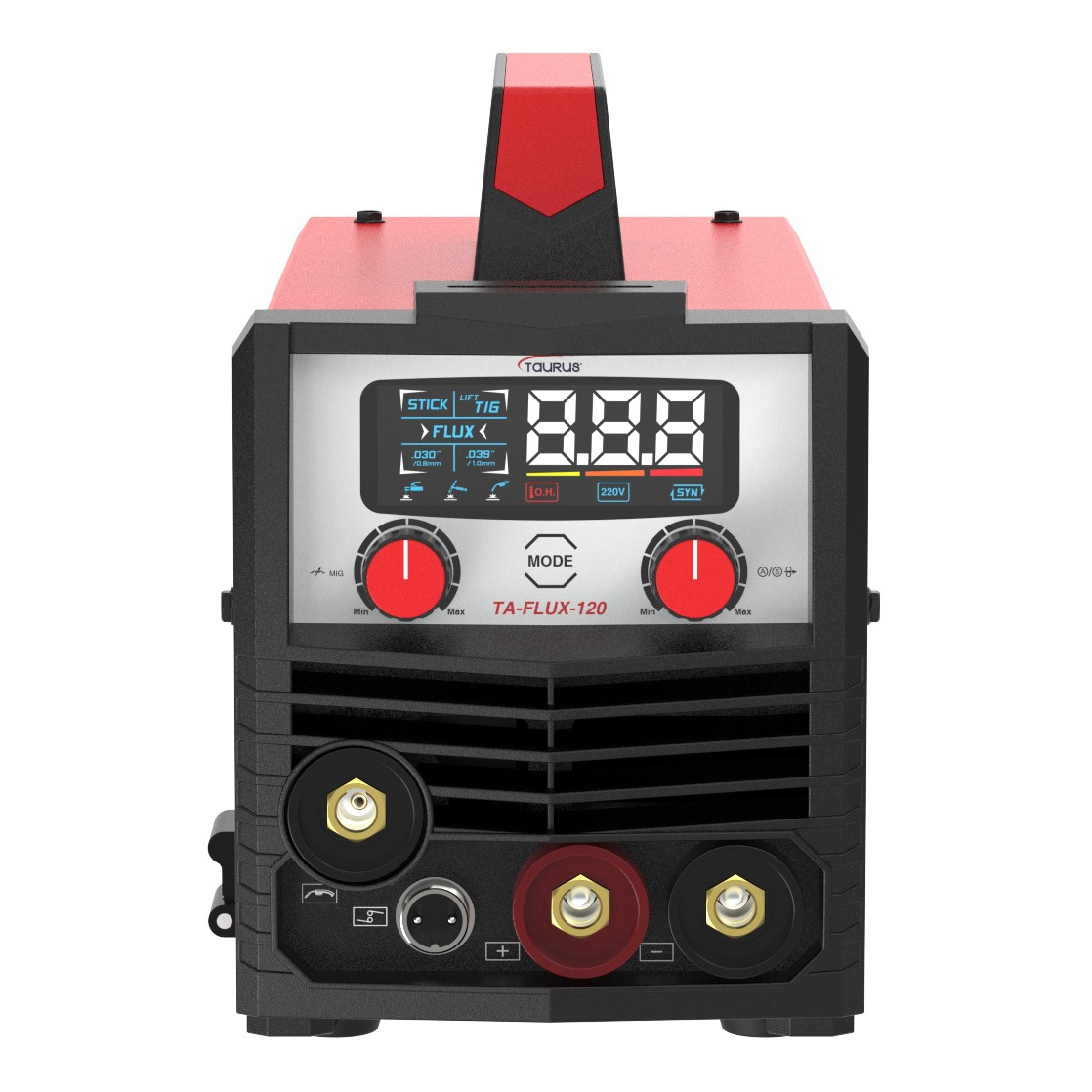

The Taurus MIG 120-FLUX is a basic MIG/MMA welding machine which is ideally suited for use by handymen and professional welders. Its lightweight allows ease of handling either by hand or with an optional shoulder strap. It is a multi-purpose welding machine fit for use in a wide variety of applications. Voltage and wire-feed speed are adjustable for optimum welding results on the material thickness to be welded. The machine can also be operated on generated power with a minimum capacity of 5.5 kVA. However, in order for the machine to be operated at maximum capacity, an 8.0kVA generator is recommended. The machine is extremely portable and can accommodate a wire spool of up to 1 kg. It is ideal for on-site work due to its light mass and diverse applications. Its characteristics ideally suit professionals and DIY users.
SPECIFICATION |
DESCRIPTION |
| PRODUCT CODE | TA-FLUX-120 |
| MODEL | MIG 120-FLUX |
| POWER SUPPLY VOLTAGE | 220V±10% SINGLE PHASE |
| DUTY CYCLE 40°C @ 10 MINUTES | 20% @ 120A |
| OUTPUT VOLTAGE | 60V |
| WELDING RANGE | 20 TO 120A |
| WIRE DIAMETER | 0.8 TO 1.0mm |
| ELECTRODE SIZE | 1.6MM TO 2.5MM |
| DIMENSIONS(mm) AND NET WEIGHT(kg) | 360 x 145 x 220mm ▪ 3.6kg |
