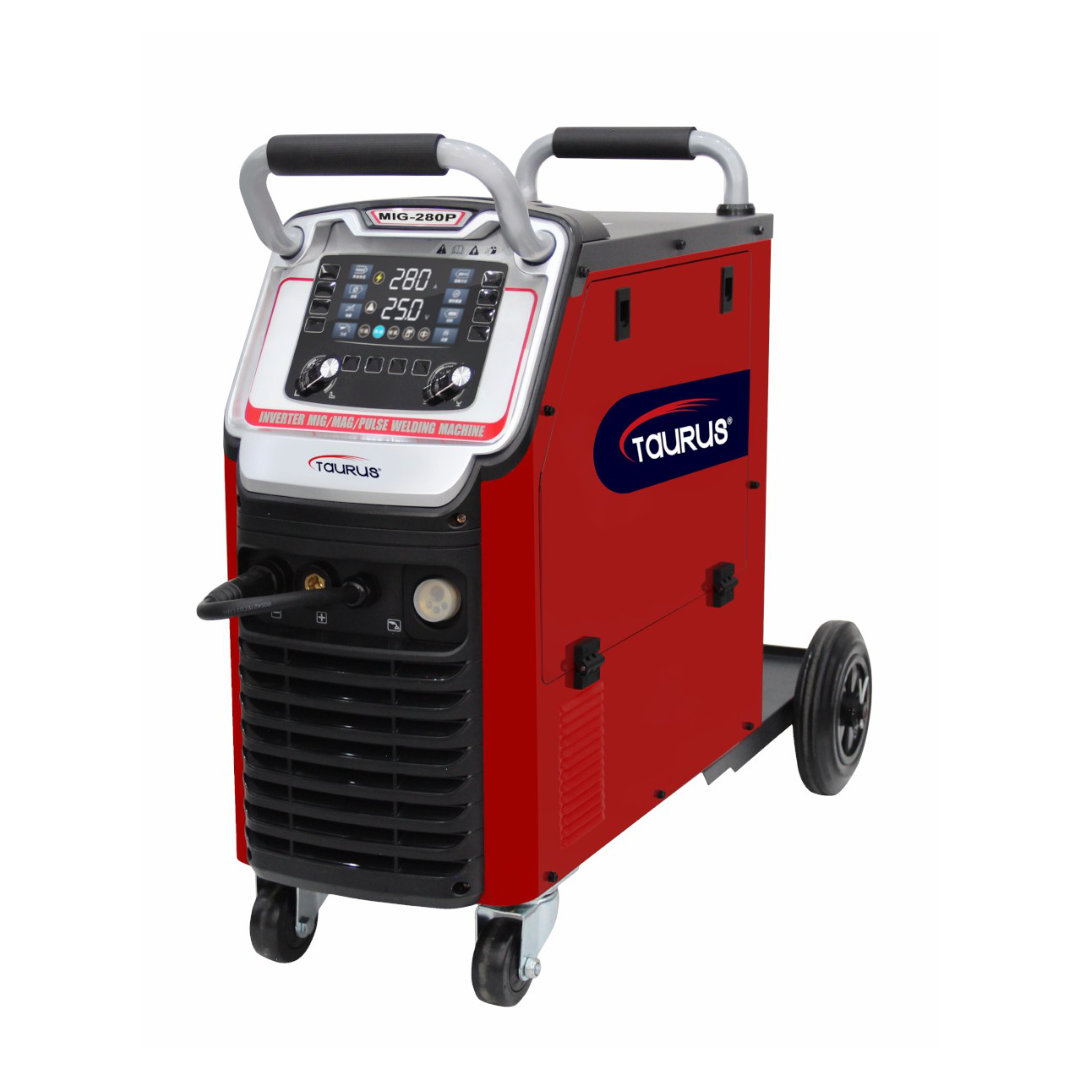

TAURUS MIG 280P DOUBLE PULSED SYNERGIC COMPACT WELDER – 380V

SKU TA-MIG280P Categories ,
  • CPU control system ensures precise, digital output all-in-one multiple welding functions.
  • IGBT high frequency soft switching inverter technology is adopted, which ensures stable, reliable working performance and is fast in dynamic response.
  • A 15% Voltage fluctuation safeguard.
  • In case of grid-voltage fluctuation and change of arc length, the closed-loop control system ensures a stable welding voltage, excellent arc self-regulation and a stable welding process.
  • Less spatter and high metal deposition rate.
  • Excellent weld seam appearance and low welding distortion.
  • Using intense pulse to strike arc that ensures an excellent arc start.
  • Smooth wire feed is attained by the adoption of a stable power supply.
  • Troubleshooting is ruled out by a perfect protection circuit ensuring a safe, reliable operation.
  • Small size, light weight, high efficiency and duty cycle, and no noise from arc welding rectifier.
  • Acceptable structure, uncomplicated layout and ease of maintenance.
contact us

This Taurus MIG-280P welding machine is a kind of high performance semi-automatic welding machine for CO2 and mixed gas shielded welding. It can weld aluminum, aluminum alloy, low carbon steel, low alloy steel, stainless steel, galvanized sheet, copper and other components, using Φ0.8-Φ1.6mm diameter stainless steel welding wire, steel wire and other solid wire or flux cored wire. The pulse inverter MIG welding machine has reasonable static characteristics and good dynamic performance.

In addition to the features of the inverter power supply above, the welding machine also have good dynamic characteristics, stable arc, good welding quality and is easy to control, etc. They are manufactured in accordance with IEC60974-1 , Safety Requirements for Arc Welding Equipment.



ACCESSORIES

  • Earth clamp cable kit.
  • MIG torch.
  • Argon flowmeter



SPECIFICATION DESCRIPTION
PRODUCT CODE TA-MIG280P
MODEL MIG280P
POWER SUPPLY VOLTAGE 380V±15% THREE PHASE
DUTY CYCLE 40°C @ 10 MINUTES 60% @ 280A
OPEN CIRCUIT VOLTAGE 52V
WELDING RANGE 60 TO 280A
WIRE DIAMETER 0.8 TO 1.6mm
PACKAGE DIMENSIONS(MM) AND NET WEIGHT(KG) 740 x 375 x 750mm   ▪  31.5KG
