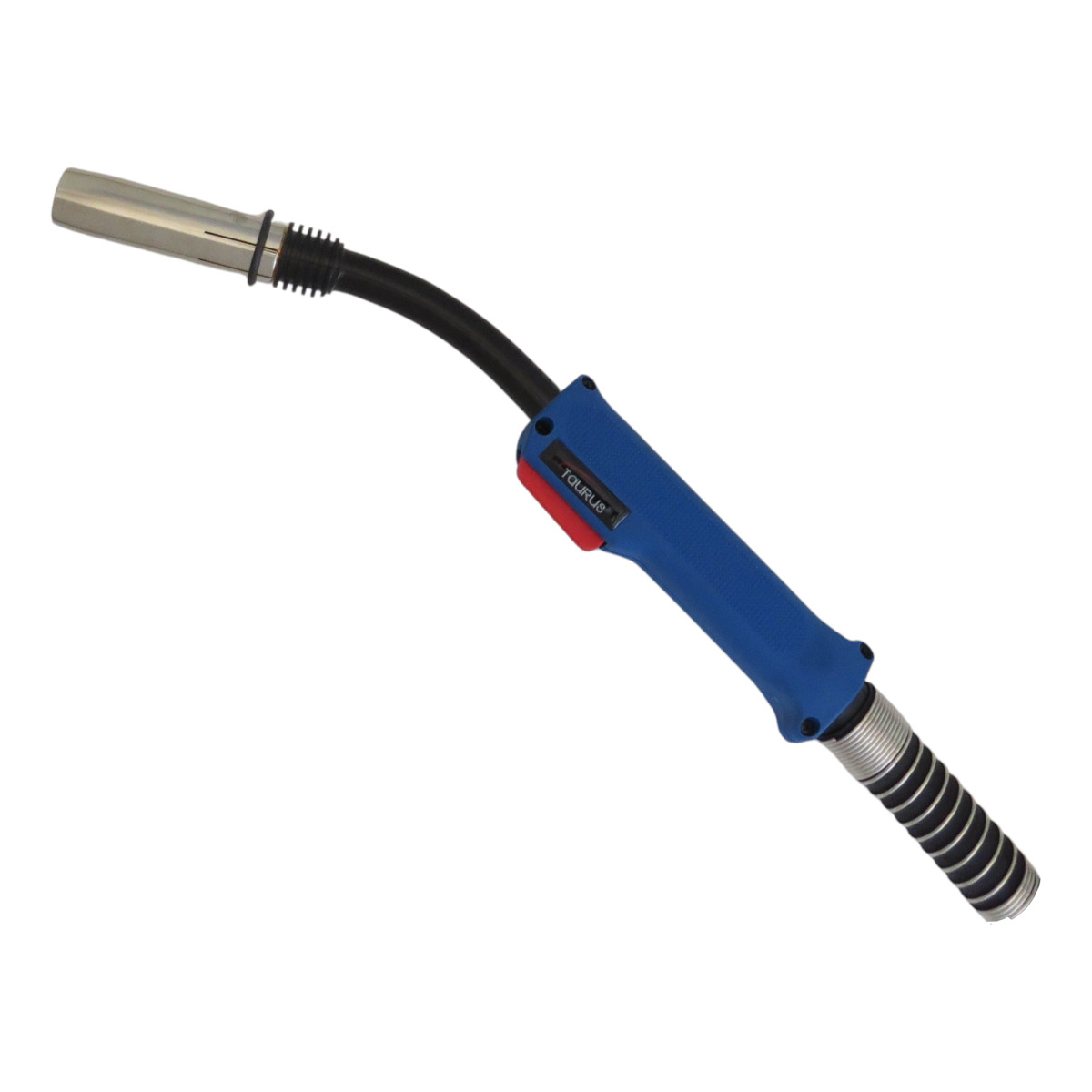

TAURUS PRO BZ61 MIG TORCHES

Taurus BZ Pro MIG torches are precision-engineered and manufactured from high-quality materials, offering the user a superior, well-designed, comfortable-to-use product that improves user performance. Nozzle walls are thicker, which enhances longevity and superior performance. Contact tips are manufactured from a high-quality, harder-than-normal copper alloy, which delivers excellent conductivity. The swan neck is durable, robust, and is manufactured from a high-temperature-resistant material, reducing the risk of shorting. The neck security block inside the handle prevents any rotational neck movement. The torches are fitted with a euro connector, which is compatible with most MIG welding machines.

General checklist to assist with the selection of a MIG torch:

• Ensure the torch length is appropriate for the welding operation.
• Confirm that the torch connection will fit directly onto the machine.
• Ensure the correct-sized tip and liner are used for the welding wire size.
• The appropriate liner should be used for the filler wire material type.
• Ensure that the correct torch amperage for the application is available.
• Confirm that the duty cycle of the MIG torch selected is suitable for the application.

The Taurus BZ61 MIG torch comes with the following;

• 1 x BZ61 MIG torch
• 1 x BZ61 Conical Nozzle/Shroud
• 1 x BZ61 Gas diffuser
• 1 x 1.2mm M8 contact tip
• 1 x Right hand M8 tip adaptor
• 1 x Steel liner

BZ61 MIG TORCH REPLACEMENT CONSUMABLES

BZ61 – M10 CONTACT TIPS

1.2mm [M8-1.20] 1.4mm [M8-1.40] 1.6mm [M8-1.60] 2.0mm [M8-2.00] 2.4mm [M8-2.40] 2.8mm [M8-2.80] 3.2mm [M8-3.20]

BZ61 TIP ADAPTOR

M10 [02.03.61]

BZ61 GAS DIFFUSER

[02.05.61]

BZ61 NOZZLE

Conical [02.02.61CO]

BZ61 STEEL LINERS

Steel (2.4mm) : 4m [02.04.61N4]

Click here to see the full list of liners
