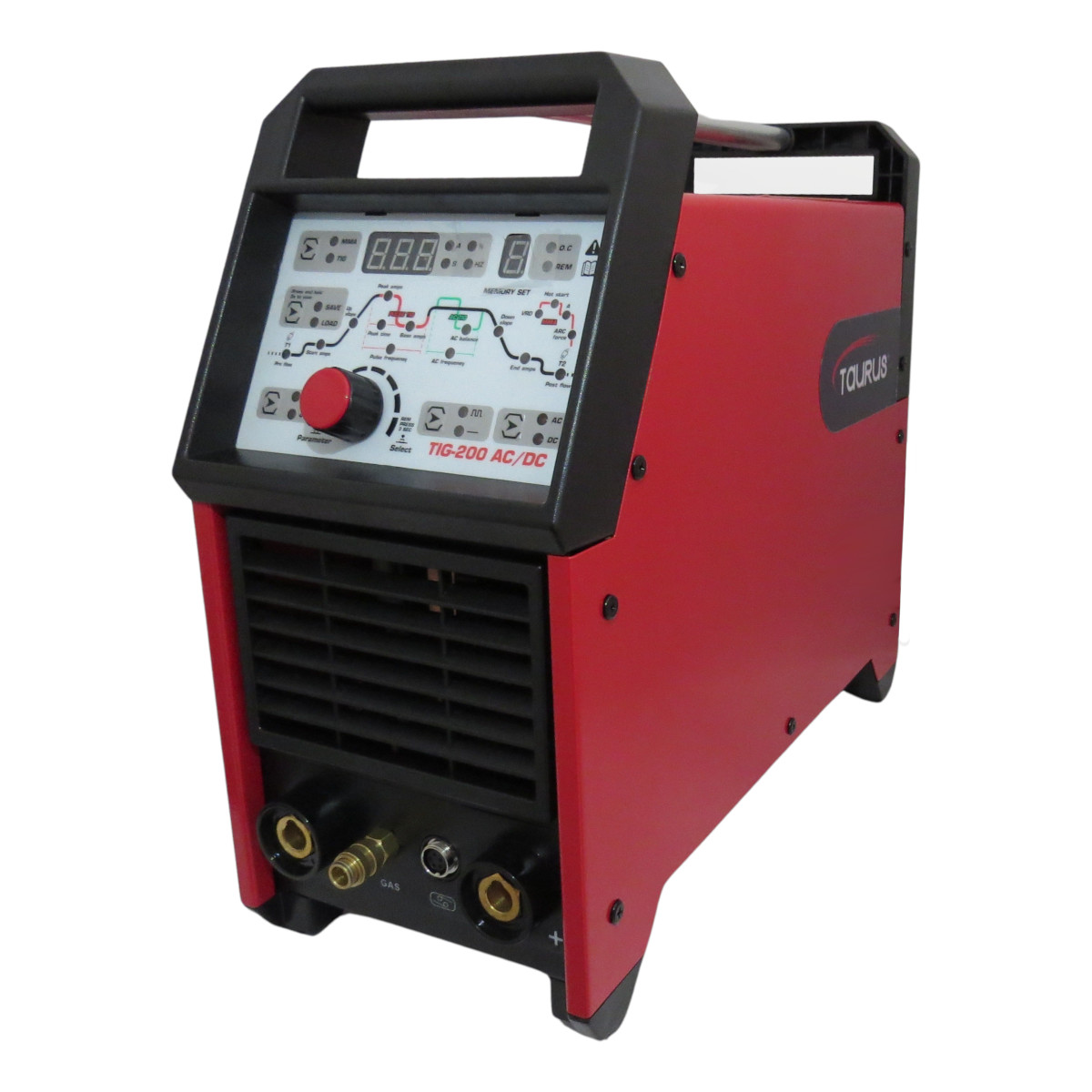

The Taurus TIG AC/DC 200A PULSE inverter is a robust, generator-friendly machine designed and manufactured for operation under demanding industrial conditions. The advanced power input system will detect and handle a voltage drop or a spike of up to 20%. This will not only safeguard the machine against damage resulting from erratic power supply, but will also ensure smooth, uninterrupted operation. The two main built-in functions, pulse welds and high frequency ignition, ensure professional ease of welding and high-quality welds. The pulse function facilitates control over the welding process and prevents burn-through on the workpiece. The high frequency ignition creates a very soft start arc as well as maximum arc control. This obviates the need to touch the workpiece with the tungsten electrode. Both functions have a great advantage when welding thin material. The Taurus TIG AC/DC 200A PULSE inverter’s selection panel allows welding with either AC or DC current – in AC mode for aluminium welding or in DC mode for all steel and steel alloy materials.
SPECIFICATION |
DESCRIPTION |
| PRODUCT CODE | TA-TIG200ACDC-HF-P |
| MODEL | TA-TIG200ACDC-HF-P |
| RATED POWER SUPPLY INPUT | 220V±20% SINGLE PHASE |
| DUTY CYCLE 40°C @ 10 MINUTES | 40% @ 200A(TIG) ▪ 40% @ 180A(MMA) |
| OPEN CIRCUIT VOLTAGE | 56V |
| WELDING CURRENT RANGE | 5 – 200A |
| DIMENSIONS(mm) AND NET WEIGHT(kg) | 500 x 220 x 400mm ▪ 12kg |
