TIG TORCH COLLET AND COLLET BODIES

Categories Tig & Accessories, Collect and Collect Bodies, Consumables

Ensures the tungsten electrode in the TIG torch is held and kept in position and the shielding gas is distributed sufficiently.

Download or Whatsapp a PDF of this product

COLLETS AND COLLET BODIES

Taurus collets and collet bodies are precision engineered and manufactured from high-quality copper. It ensures that the tungsten electrode in the TIG torch is held and kept in position. The collet body distributes the shielding gas. Once the required tungsten position is established, the back cap can be tightened thereby locking the tungsten in position. This creates a solid contact which is necessary for strong current transfer.

COLLETS

PRODUCT CODE	SIZE	TORCH
T13N22	1.6mm	WP9
T13N23	2.4mm	WP9
T10N23	1.6mm	WP17 + WP18 + WP26
T10N24	2.4mm	WP17 + WP18 + WP26
T10N25	3.2mm	WP17 + WP18 + WP26

COLLET BODIES

PRODUCT CODE	SIZE	TORCH
T13N27	1.6mm	WP9
T13N28	2.4mm	WP9
T10N31	1.6mm	WP17 + WP18 + WP26
T10N32	2.4mm	WP17 + WP18 + WP26
T10N28	3.2mm	WP17 + WP18 + WP26

GAS LENS COLLET BODIES

Taurus gas lens collet bodies replace the standard collet bodies enabling increased shielding gas coverage and reduced turbulence. Welding discontinuances associated with atmospheric contaminants are also reduced. Gas lens collet bodies are normally manufactured from a copper-brass alloy and equipped with stainless steel mesh screens. Larger gas lens bodies provide improved gas coverage when materials are welded that tend to react to atmospheric contaminants. On complex joints, larger gas lens bodies also allow greater tungsten stick-out to gain better visibility of the weld puddle or to increase access to the joint. Gas lens collet bodies enable higher quality welds, improved gas flow, lower gas consumption and optimal weld puddle shielding.

GAS LEN COLLET BODIES

PRODUCT CODE	SIZE	TORCH
T45V43	1.6mm	WP9
T45V44	2.4mm	WP9
T45V25	1.6mm	WP17 + WP18 + WP26
T45V26	2.4mm	WP17 + WP18 + WP26

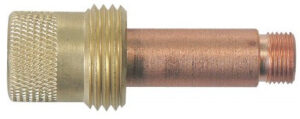

T45V27	3.2mm	WP17 + WP18 + WP26

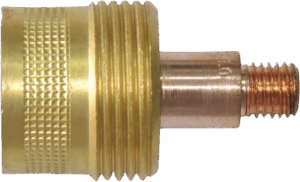

LARGE GAS LEN COLLET BODIES

PRODUCT CODE	SIZE	TORCH
T45V116	1.6mm	WP17 + WP18 + WP26
T45V64	2.4mm	WP17 + WP18 + WP26

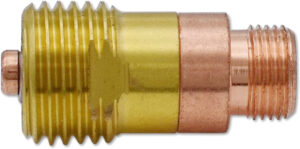

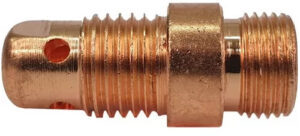

STUBBY

Taurus stubby consumables are engineered to shorten the profile of the TIG torch without sacrificing performance. This allows access to more confined welding locations.
