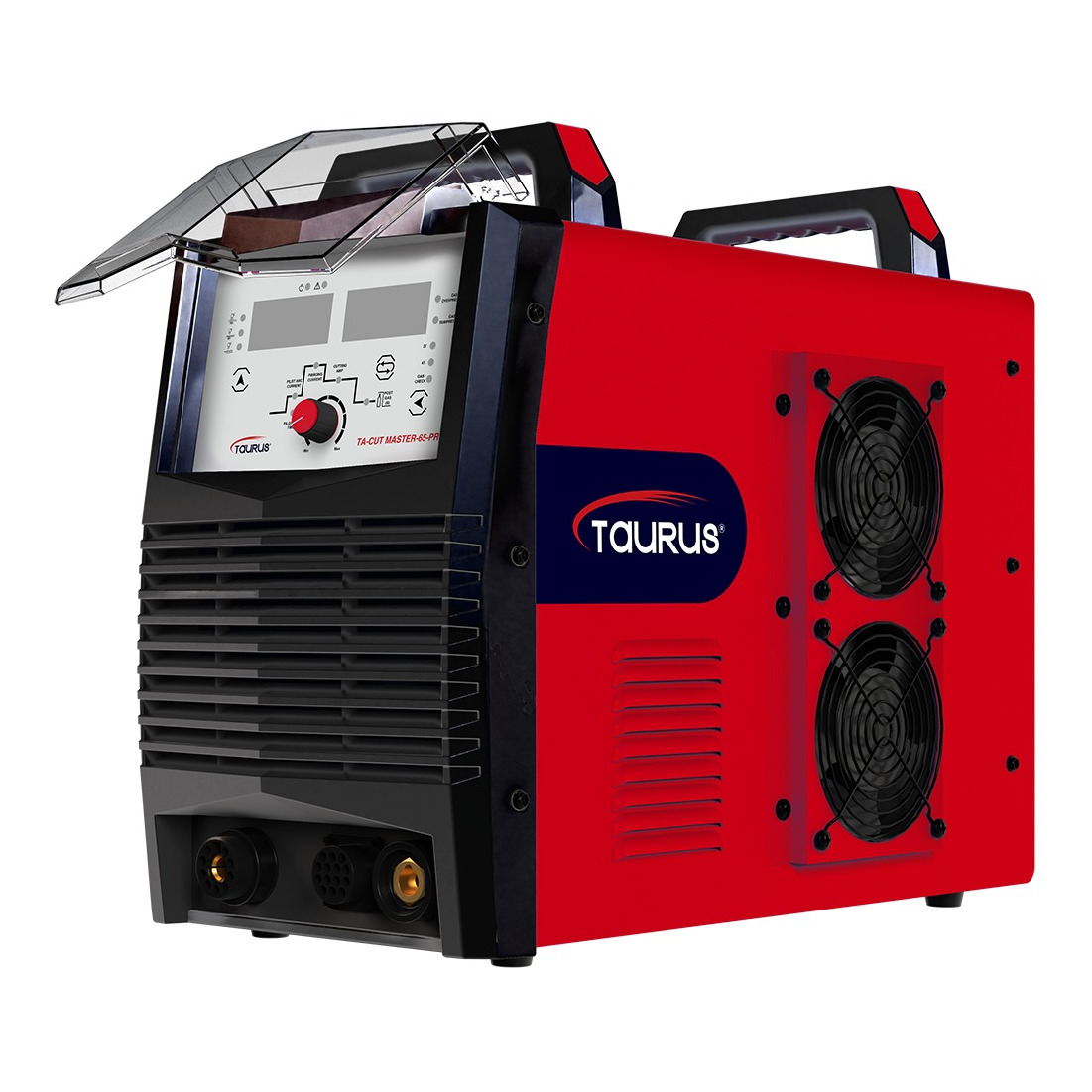

The Taurus CUTMASTER-65-PRO is a high-performance, digital plasma cutting machine, built on advanced technology suitable for a variety of cutting applications on conductive metals such as low-carbon steel, stainless steel, and aluminium in handheld as well as robotic cutting modes. With its incorporated MCU intelligent digital control technology, the machine’s operational results are proven to be superior compared to those of traditional plasma cutting machines. The machine’s cutting speed is almost twice as fast as that of oxy-acetylene gas cutting. As far as economy is concerned, the plasma air cutter far outranks oxy-acetylene cutting. It is also less cumbersome thanks to the weight advantage of the compressed air plasma cutter. The machine’s capacity is sufficient when it comes to grid cutting, and its ability to easily cut metal plates of up to 20mm thick. The non-HF arc ignition is effortless, the cutting speed is high, the end result is smooth and the post-air flow function facilitates rapid cooling down of the metal.
SPECIFICATION |
DESCRIPTION |
| PRODUCT CODE | TA-CUTMASTER-65-PRO |
| MODEL | CUTMASTER 65-PRO |
| POWER SUPPLY VOLTAGE | 400V±15% THREE PHASE |
| DUTY CYCLE 40°C @ 10 MINUTES | 60% @ 65A |
| OPEN CIRCUIT VOLTAGE | 350V |
| OUTPUT CURRENT RANGE | 20 TO 65A |
| MAXIMUM QUALITY CUT THICKNESS (MILD STEEL) | 25mm |
| SEVERANCE CUT THICKNESS (MILD STEEL) | 30mm |
| PACKAGE DIMENSIONS(MM) AND NET WEIGHT(KG) | 490 x 230 x 380mm ▪ 18KG |
