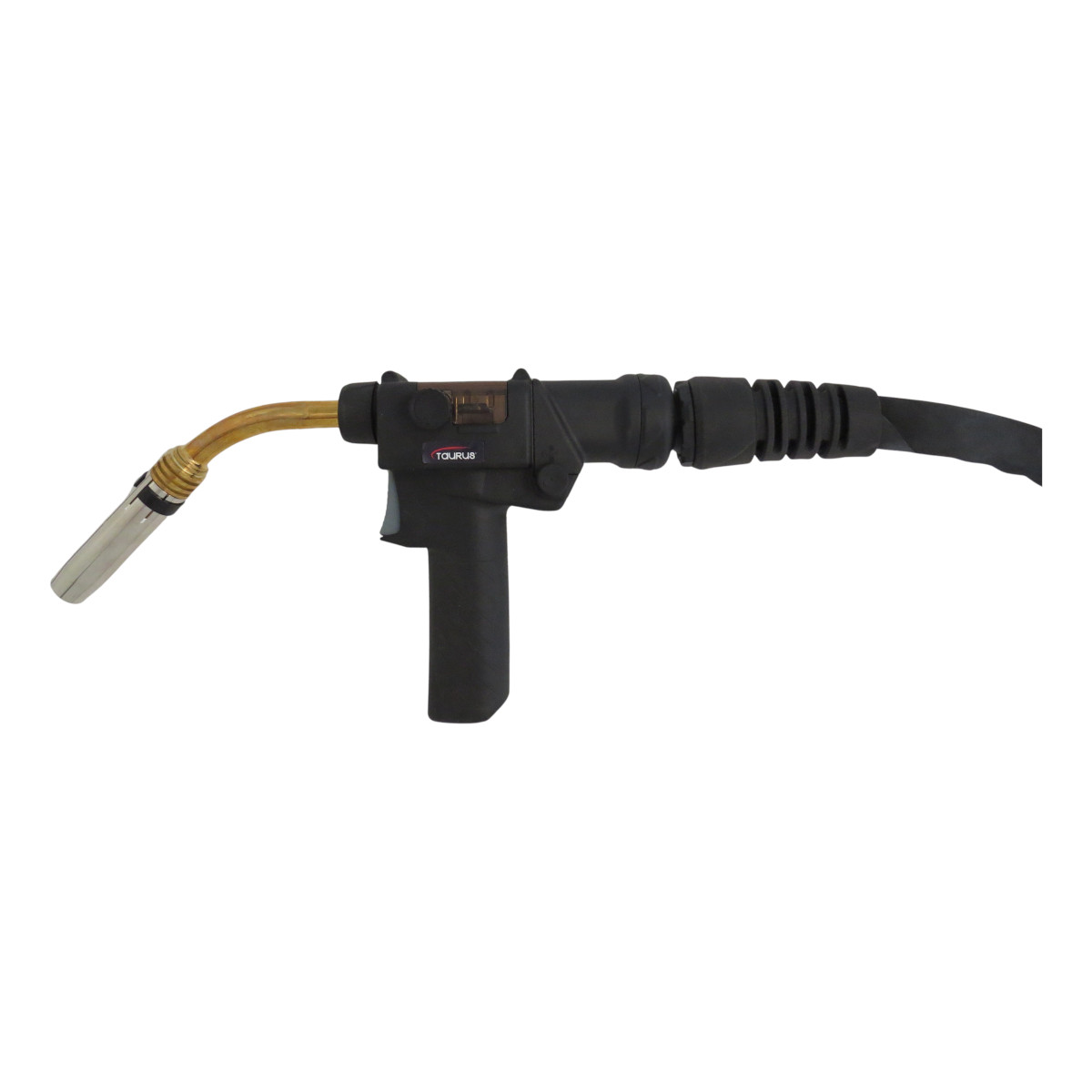

TAURUS PP36 PUSH-PULL MIG TORCH

The advantage of the Taurus eight metre PP36 push-pull MIG torch is the ability to provide consistent, smooth, reliable and uninterrupted wire feeding even over a longer welding distance. This is utilised by the dual-action mechanism, where the wire is pushed by the welding machine feeder-drive system and simultaneously pulled by a set of feed rollers on the torch. Aluminium MIG wire is not as sturdy as other MIG wire options, and using the Taurus PP36 push-pull MIG torch makes it ideal to easily help guide the wire through the contact tip.



General checklist to assist with the selection of a MIG torch:

• Ensure the torch length is appropriate for the welding operation.
• Confirm that the torch connection will fit directly onto the machine.
• Ensure you use the correct-sized tip and liner for the welding wire size.
• The appropriate liner should be used for the filler wire material type.
• Ensure that the correct torch amperage for the application is available.
• Confirm that the duty cycle of the MIG torch selected is suitable for the application.

The Taurus PP36 MIG torch comes with the following;

• 1 x PP36 MIG torch (8m)
• 1 x BZ36 Conical Nozzle/Shroud
• 1 x BZ36 Gas diffuser
• 1 x 1.2mm M8 contact tip
• 1 x Right hand M8 tip adaptor
• 1 x Yellow steel liner



BZ36 – M6 CONTACT TIPS

0.8mm [M6-0.8] 0.9mm [M6-0.9] 1.0mm [M6-1.00] 1.2mm [M6-1.20] 1.4mm [M6-1.40] 1.6mm [M6-1.60]



BZ36 – M8 CONTACT TIPS

0.8mm [M8-0.8] 0.9mm [M8-0.9] 1.0mm [M8-1.00] 1.2mm [M8-1.20] 1.4mm [M8-1.40] 1.6mm [M8-1.60] 1.8mm [M8-1.8] 2.0mm [M8-2.00]



BZ36 TIP ADAPTOR

M6 [02.03.36M6] M8 [02.03.36M8]



BZ36 GAS DIFFUSER

[02.05.36]



BZ36 NOZZLE

Conical [02.02.36CO]



BZ36 STEEL LINERS

Blue (0.6mm – 0.9mm) : 4.4m [02.04.B4] Red (1.0mm – 1.2mm) : 4.4m [02.04.R4] Red (1.0mm – 1.2mm) : 5.4m [02.04.R5]

Click here to see the full list of liners
