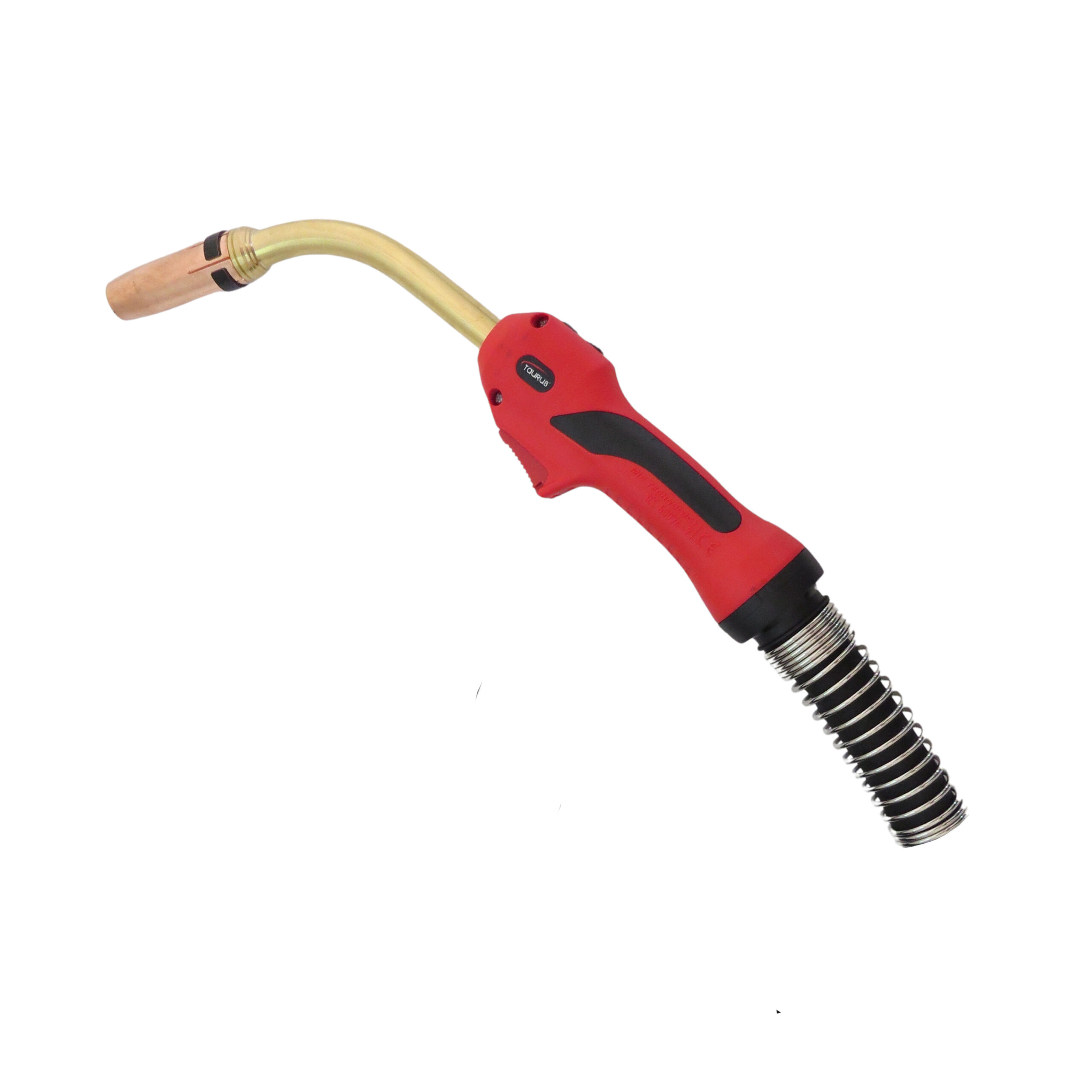

TAURUS PRO BZ501 MIG TORCHES

Taurus BZ Pro MIG torches are precision-engineered and manufactured from high-quality materials, offering the user a superior, well-designed, comfortable-to-use product that improves user performance. Nozzle walls are thicker, which enhances longevity and superior performance. Contact tips are manufactured from a high-quality, harder-than-normal copper alloy, which delivers excellent conductivity. The swan neck is durable, robust, and is manufactured from a high-temperature-resistant material, reducing the risk of shorting. The neck security block inside the handle prevents any rotational neck movement. The torches are fitted with a euro connector, which is compatible with most MIG welding machines.



General checklist to assist with the selection of a MIG torch:

• Ensure the torch length is appropriate for the welding operation.
• Confirm that the torch connection will fit directly onto the machine.
• Ensure the correct-sized tip and liner is used for the welding wire size.
• The appropriate liner should be used for the filler wire material type.
• Ensure that the correct torch amperage for the application is available.
• Confirm that the duty cycle of the MIG torch selected is suitable for the application.



The Taurus BZ501 / MB501 water-cooled MIG torch comes with the following;

• 1 x BZ501 MIG torch
• 1 x BZ501 Conical Nozzle/Shroud
• 1 x BZ501 Gas diffuser
• 1 x 1.2mm M8 contact tip
• 1 x Right hand M8 tip adaptor
• 1 x Steel liner



BZ501 MIG TORCH REPLACEMENT CONSUMABLES



BZ501 – M8 CONTACT TIPS

0.8mm [M8-0.8] 0.9mm [M8-0.9] 1.0mm [M8-1.00] 1.2mm [M8-1.20] 1.4mm [M8-1.40] 1.6mm [M8-1.60] 1.8mm [M8-1.8] 2.0mm [M8-2.00]



BZ501 TIP ADAPTOR

M8 [02.05.501C]



BZ501 GAS DIFFUSER

[02.05.501]



BZ501 NOZZLE

Conical [02.02.501.16]



BZ501 STEEL LINERS

Steel (1.2mm – 1.6mm) : 4m [02.04.501N4] Steel (1.2mm – 1.6mm) : 5m [02.04.501N5]

Click here to see the full list of liners





BZ501 MIG TORCH REPLACEMENT ACCESSORIES



SWAN NECK

For Taurus-Pro BZ501 torch [02.06.501-PRO] Universal BZ501 torch [02.06.501] Taurus Pro swan neck is not compatible with other brands. Use the universal swan neck if it’s not a Taurus-pro torch.



TORCH HANDLE AND TRIGGER SWITCH

Handle for Taurus-Pro torches [HANDLE-PRO] Switch for Taurus-Pro torches [HANDLE-PRO-SW] Taurus Pro handle and switch are not compatible with other brands.

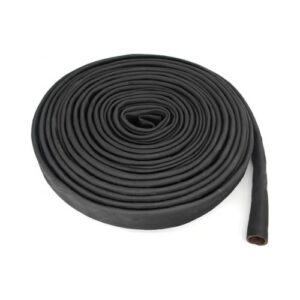

TORCH OUTER CANVAS SHEATHING

51mm x 55mm [VA.PR.51.55] Sold per meter

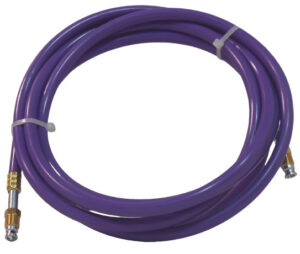

TORCH OUTER LINER

3m [02.21.501.3] 4m [02.21.501.4] 5m [02.21.501.5] Sold per length





TORCH BRAIDED HOSE

Blue 5mm x 8mm [VAGH58B] Red 5mm x 8mm [VAGH58R] Sold per meter
