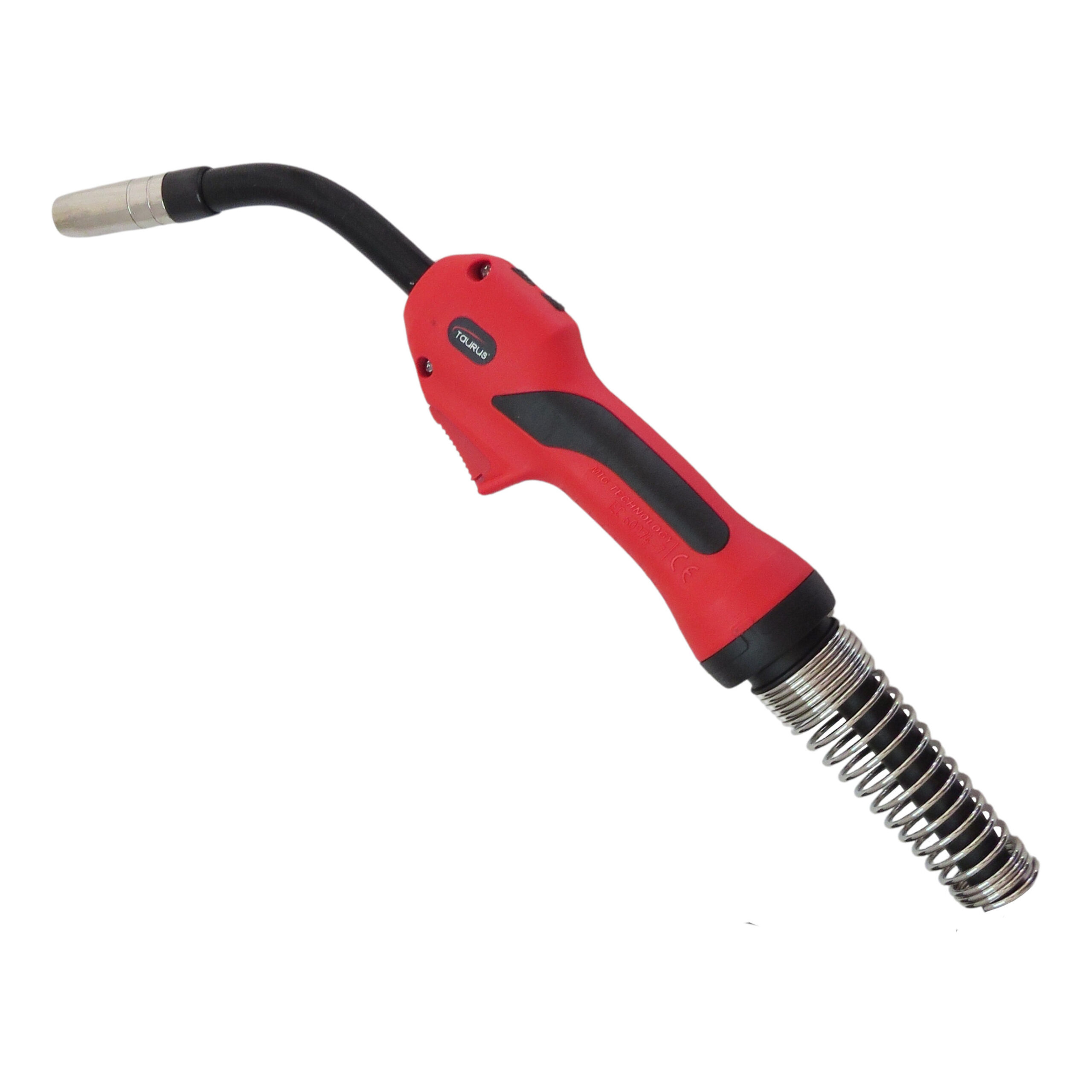

TAURUS PRO BZ15 MIG TORCHES

Taurus BZ Pro MIG torches are precision-engineered and manufactured from high-quality material, offering the user a superior, well-designed, comfortable-to-use product which improves user performance. Nozzle walls are thicker, which enhances longevity and superior performance. Contact tips are manufactured from a high-quality, harder-than-normal copper alloy which delivers excellent conductivity. The swan neck is durable, robust, and is manufactured from a high-temperature-resistant material, reducing the risk of shorting. The neck security block inside the handle prevents any rotational neck movement. The torches are fitted with a euro connector which is compatible with most MIG welding machines.

General checklist to assist with the selection of a MIG torch:

• Ensure the torch length is appropriate for the welding operation.
• Confirm that the torch connection will fit directly onto the machine.
• Ensure the correct-sized tip and liner are used for the welding wire size.
• The appropriate liner should be used for the filler wire material type.
• Ensure that the correct torch amperage for the application is available.
• Confirm that the duty cycle of the MIG torch selected is suitable for the application.

The Taurus BZ15 / MB15 MIG torch comes with the following;

• 1 x BZ15 MIG torch
• 1 x BZ15 Conical Nozzle/Shroud
• 1 x 0.8mm M6 contact tip
• 1 x Left hand M6 tip adaptor
• 1 x Red steel liner

BZ15 MIG TORCH REPLACEMENT CONSUMABLES

BZ15 – M6 CONTACT TIPS

0.6mm [BZ15-0.6] 0.8mm [BZ15-0.8] 0.9mm [BZ15-0.9] 1.0mm [BZ15-1.0] 1.2mm [BZ15-1.2]

BZ15 TIP ADAPTOR

M6 [02.05.15]

BZ15 NOZZLE

Conical [02.02.15CO]

BZ15 STEEL LINERS

Blue (0.6mm – 0.9mm) : 4.4m [02.04.B4] Red (1.0mm – 1.2mm) : 4.4m [02.04.R4] Red (1.0mm – 1.2mm) : 5.4m [02.04.R5]

Click here to see the full list of liners
