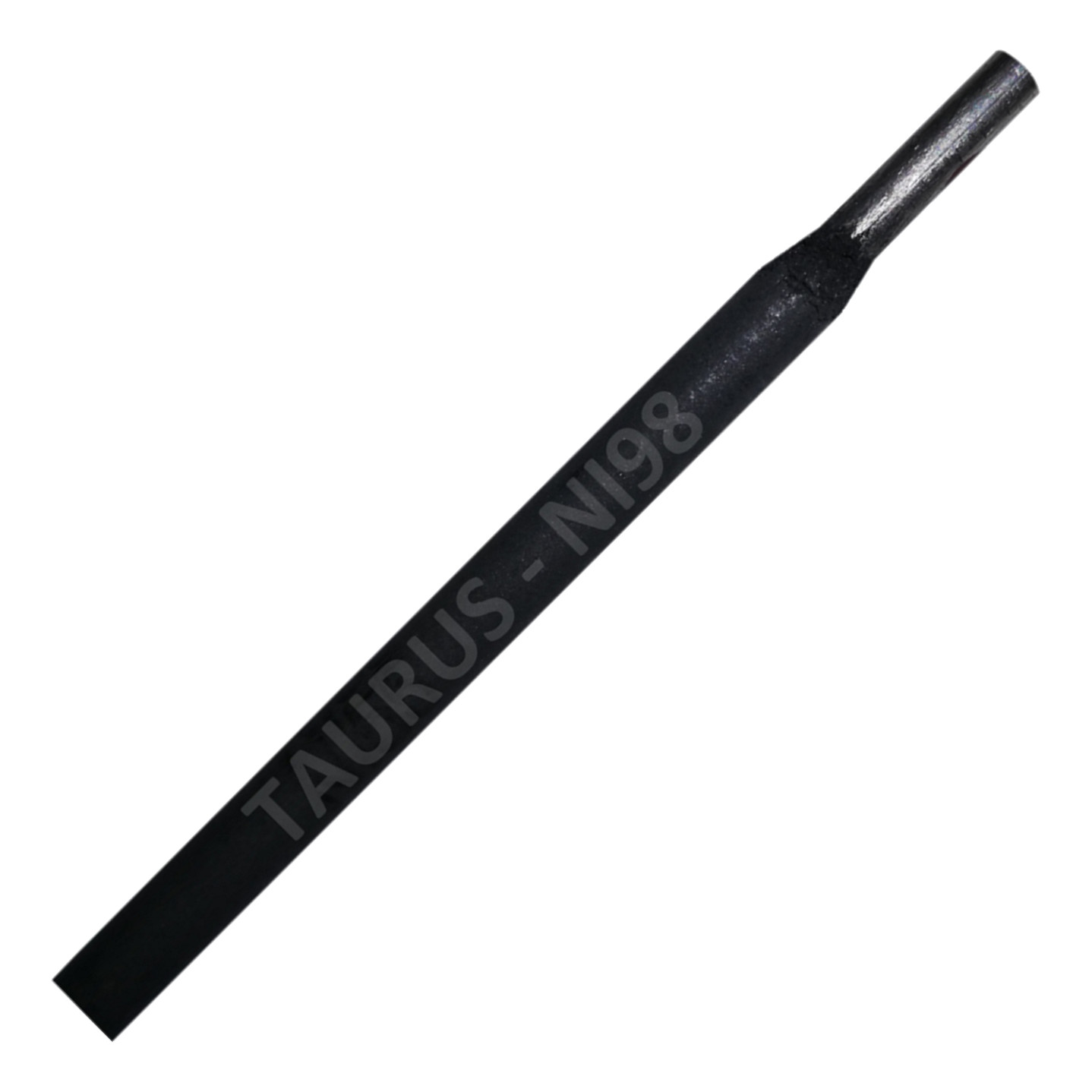

TAURUS PRO NICKELCAST 98 ELECTRODES

SKU NI98-4.0-E Categories , ,

A pure nickel electrode which is universally used for welding all types of cast iron. Specially designed to operate at low currents which minimises heat input and thus facilitates the cold welding of cast iron. Weld-induced stresses can be reduced by hammer peening. Stable arc with clean bead appearance. The weld metal is fully machinable.



  • Universally used for welding all types of cast iron.
  • Operates at low current thus facilitates cold welding.
  • Stable arc with clean bead appearance.
  • The weld metal is fully machinable.

TAURUS PRO Ni 98 is a pure nickel electrode which is universally used for welding all types of cast iron. Specially designed to operate at low currents which minimises heat input and thus facilitates the cold welding of cast iron. Weld-induced stresses can be reduced by hammer peening. Stable arc with clean bead appearance. The weld metal is fully machinable.



WELDING POSITIONS

  • Flat
  • Horizontal
  • Vertical up
  • Overhead



CLASSIFICATIONS

  • AWS A5.15 E Ni-CI
  • DIN 8573 E Ni BG 1



AVAILABLE IN

  • 2.6mm – 1kg pack
  • 3.2mm – 1kg pack
  • 4.0mm – 1kg pack



COMPOSITION %
Carbon 0.30 %
Manganese 0.20 %
Nickel 97.00 %



MECHANICAL AS WELDED
Yield strength 219 N/mm²
Tensile strength 304 N/mm²
Victor hardness HV30 160 HV
