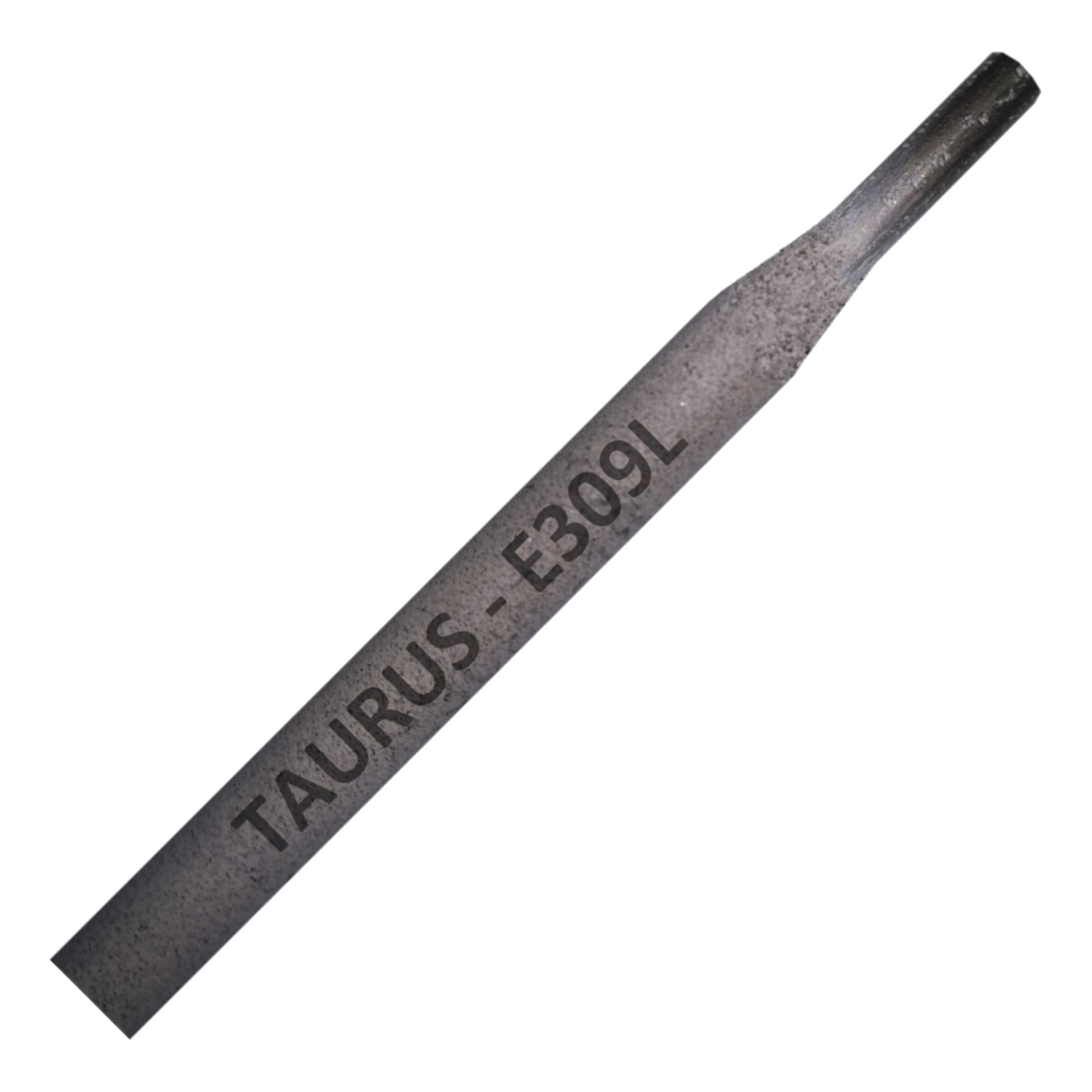

TAURUS PRO 309L STAINLESS STEEL ELECTRODES

SKU 309L-2.60-E Categories , ,

A rutile, extra-low carbon-resistant electrode for welding corrosion resistant and heat resistant CR and CrNi steels. The high level of alloying elements also makes this electrode suitable for welding Cr and CrNi steel to mild steel. Very smooth weld with clean edge, low spatter loss and excellent slag removability.



  • Extra-low carbon-resistant electrode.
  • Welding corrosion-resistant and heat-resistant steels.
  • Suitable for welding Cr and CrNi steel to mild steel.
  • Low spatter and smooth welding with clean weld edges.
  • Easy slag removal.



TAURUS PRO 309L is a rutile, extra-low carbon-resistant electrode for welding corrosion resistant and heat resistant CR and CrNi steels. The high level of alloying elements also makes this electrode suitable for welding Cr and CrNi steel to mild steel. Very smooth weld with clean edge, low spatter loss and excellent slag removability.



WELDING POSITIONS

  • Flat
  • Horizontal
  • Vertical up
  • Overhead



CLASSIFICATIONS

  • AWS A5.4 E 309L-16
  • ISO 3581 E 23 12 LR 26
  • DIN 8556 E 23 12 nC R 26



AVAILABLE IN

  • 2.6 x 300mm – 1kg pack
  • 3.2 x 350mm – 1kg pack
  • 4.0 x 350mm – 1kg pack



COMPOSITION %
Carbon 0.03 %
Manganese 1.20 %
Silicon 0.70 %
Nickel 13.00 %
Chromium 25.00 %



MECHANICAL AS WELDED
0.2% Proof stress 480 N/mm²
Tensile strength 600 N/mm²
Elongation (5xd) 35 %
Reduction of area 40 %
Impact strength ISO-V@+20°C 60 Joule
