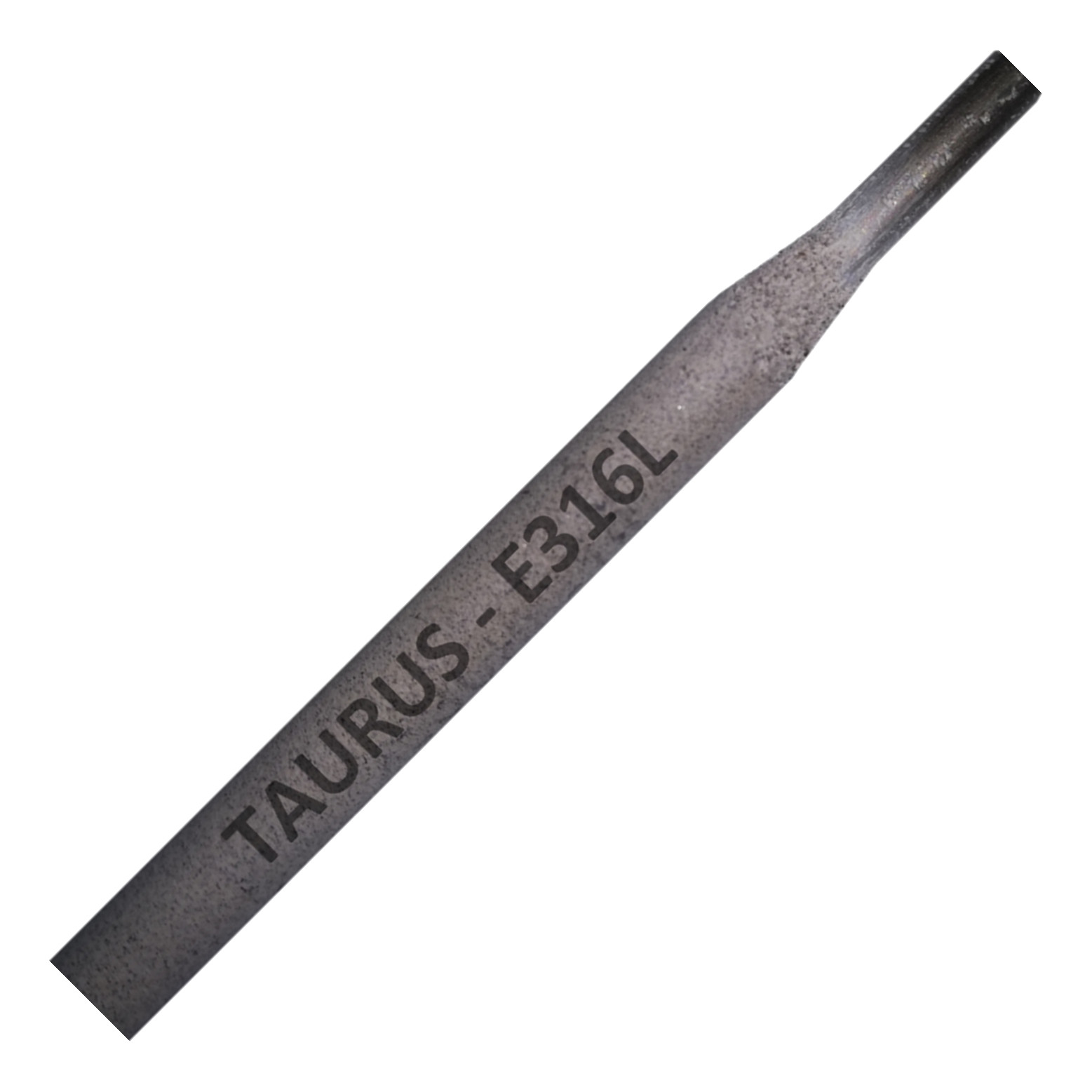

TAURUS PRO 316L STAINLESS STEEL ELECTRODES

SKU 316L-2.00-E Categories , ,

A rutile, high-alloy, extra-low carbon austenitic electrode for welding corrosion resistant CrNiMo steels resistant to atmospheric corrosion. Resistant to grain disintegration at operating temperatures up to 350°C. Very smooth weld with clean weld edge, low spatter loss and easy slag removal. Suitable for welding AISI/ASTM 316, 316L, 316LN, 316H and 316Ti.



  • Extra-low carbon austenitic electrode.
  • Welding corrosion resistant CrNiMo steels.
  • Resistant to grain disintegration.
  • Low spatter and smooth welding with clean weld edges.
  • Easy slag removal.
  • Suitable for welding AISI/ASTM 316, 316L, 316LN, 316H and 316Ti.

TAURUS PRO 316L is a rutile, high-alloy, extra-low carbon austenitic electrode for welding corrosion resistant CrNiMo steels resistant to atmospheric corrosion. Resistant to grain disintegration at operating temperatures up to 350°C. Very smooth weld with clean weld edge, low spatter loss and easy slag removal. Suitable for welding AISI/ASTM 316, 316L, 316LN, 316H and 316Ti.



WELDING POSITIONS

  • Flat
  • Horizontal
  • Vertical up
  • Overhead



CLASSIFICATIONS

  • AWS A5.4 E 316L-16
  • ISO 3581 E 19 12 3 LR 26
  • DIN 8556 E 19 12 3 nC R 26



AVAILABLE IN

  • 2.0 x 300mm – 1kg pack
  • 2.6 x 300mm – 1kg pack
  • 3.2 x 350mm – 1kg pack
  • 4.0 x 350mm – 1kg pack



COMPOSITION %
Carbon 0.03 %
Manganese 0.70 %
Silicon 0.70 %
Nickel 12.00 %
Chromium 19.00 %
Molybdenum 2.50 %



MECHANICAL AS WELDED
0.2% Proof stress 400 N/mm²
Tensile strength 550 N/mm²
Elongation (5xd) 35 %
Reduction of area 50 %
Impact strength ISO-V@0°C 60 Joule
Impact strength ISO-V@+20°C 70 Joule
